Why Can Lithium-Ion Batteries Explode? Detailed Examination of Underlying Causes
Introduce
Lithium-ion batteries power a vast array of devices and are celebrated for their high energy output and rechargeability. However, their capability to store a large amount of energy in a small space also brings significant risks, particularly the risk of explosions, which, while rare, can have severe consequences.
-
Thermal Runaway Explanation:
-
Chemical and Physical Causes: Thermal runaway is primarily a result of chemical reactions that generate excessive heat; this can be triggered by several factors. When the internal temperature of a lithium-ion battery rises to a point where the heat can no longer efficiently dissipate, it can cause the electrolyte and other battery materials to decompose and generate more heat. This runaway reaction is self-sustaining and accelerates once it begins.
-
Cascading Failures Leading to Explosions: In thermal runaway, the breakdown of electrolytes releases gases that increase internal pressure. If the battery casing ruptures, it may expose the highly reactive lithium to oxygen, resulting in a fire or explosion.
-
-
Internal Short Circuits:
-
Mechanical Damage and Manufacturing Defects: Internal shorts are often caused by physical damage, such as dropping the device, or by flaws in the battery’s construction, such as poorly aligned electrodes or inadequate separator thickness. These defects can create conditions where the positive and negative electrodes contact directly, causing a short circuit.
-
Effect on Battery Stability: Short circuits can rapidly increase internal temperature and pressure, overwhelming the battery’s built-in safety mechanisms and leading to a breach of the cell casing.
-
-
Overcharging Risks:
-
Charger Compatibility and Regulation: Using non-standard or incompatible chargers can lead to overcharging by failing to properly regulate the voltage and current flowing into the battery. Overcharging a lithium-ion battery can cause lithium metal plating on the anode, creating dendrites that can pierce the separator and create a short circuit.
-
Battery Management System’s Role: A sophisticated battery management system (BMS) ensures that each cell within a battery pack is charged correctly and prevents cells from overcharging—a critical safeguard against thermal runaway and explosions.
-
-
Flammable Electrolytes:
-
Composition and Combustibility: The electrolytes in lithium-ion batteries typically consist of organic carbonates, which are flammable. Their role is to facilitate ionic movement between the electrodes, but when compromised, they pose a significant fire risk.
-
Initiation and Propagation of Fire: If the battery casing is compromised and the flammable electrolyte is exposed to air or a spark, it can ignite. Moreover, once one cell catches fire, the heat can propagate to adjacent cells, escalating to a full battery pack explosion.
-
Preventive Measures to Mitigate Explosion Risks in Lithium-Ion Batteries
Ensuring the safety of lithium-ion batteries involves a multifaceted approach, incorporating advanced technology, rigorous testing, and user education. Here’s a detailed look at these preventive measures:
Design and Manufacturing Enhancements
-
Advanced Battery Design:
-
Improved Separator Technology: One of the critical components in the safety of lithium-ion batteries is the separator, which keeps the anode and cathode from directly contacting each other. Himax Electronics uses advanced materials that not only improve the thermal stability of the separators but also enhance their mechanical strength to prevent rupture under stress.
-
Robust Electrode Architecture: Himax designs electrodes with enhanced structural integrity to minimize the risk of damage that can lead to internal shorts. This includes the use of coatings and additives that improve the electrical stability of the electrodes and reduce the formation of dendrites during charging.
-
-
Quality Control Protocols:
-
Stringent Manufacturing Standards: Himax maintains rigorous quality control measures throughout the manufacturing process. This includes the use of automated precision equipment that minimizes human error and ensures that each battery component meets exact specifications.
-

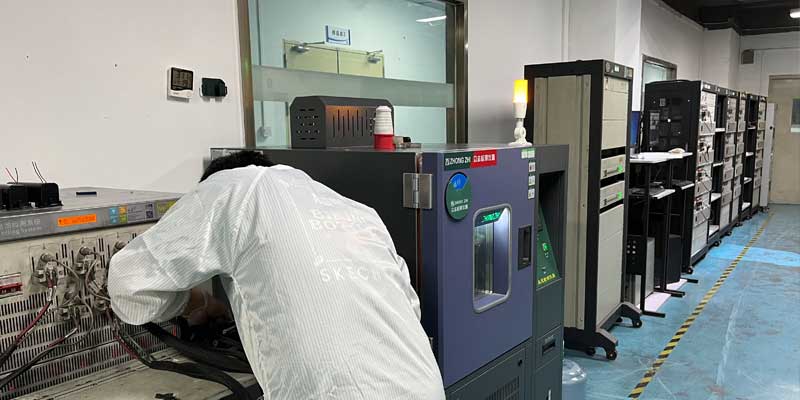

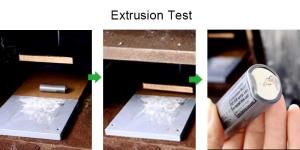

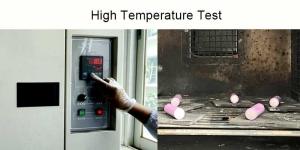

Regular Testing and Inspection: Each battery batch undergoes extensive testing, including X-ray inspection, electrical tests, and stress tests, to detect any defects that could compromise safety before the products reach consumers.
-
Battery Management Systems (BMS) and Charging Regulations
-
Sophisticated BMS Features:
-
Real-Time Monitoring and Control: Himax’s advanced BMS continuously monitors the battery’s voltage, current, and temperature. It can make instantaneous adjustments to the charging process and operational conditions, preventing conditions that lead to overheating or overcharging.
-
Predictive Maintenance Capabilities: Leveraging artificial intelligence, Himax’s BMS can predict potential failures based on historical data and real-time performance, allowing for preemptive maintenance actions to be taken before hazardous conditions develop.
-
-
Safe Charging Practices:
-
Charger Compatibility and Certification: Himax ensures that all chargers provided with their devices are specifically designed to match the battery’s charging requirements, reducing the risk of overcharging. All chargers comply with international safety standards and are thoroughly tested for reliability and safety.
-
Consumer Education on Charging Safety: Himax actively educates customers on the importance of using appropriate chargers and adhering to recommended charging practices. This includes clear guidelines on how to care for the battery to maximize lifespan and maintain safety.
-
Himax Electronics: Pioneering Safer Battery Technologies
Himax Electronics is not only implementing these safety measures but is also at the forefront of innovating new technologies that enhance battery safety further.
-
Innovative Research and Development:
-
Solid-State Battery Technology: Himax is investing in the research and development of solid-state batteries, which promise even greater safety by replacing flammable liquid electrolytes with non-flammable solid materials. These batteries are less susceptible to leaks and thermal runaway, providing a safer alternative to traditional lithium-ion technology.
-
Thermal Management Innovations: Advanced cooling solutions are being developed to more effectively dissipate heat during battery operation and charging, further reducing the risk of overheating.
-
-
Global Safety Initiatives and Compliance:
-
Leadership in Safety Standards: Himax not only follows but helps to set international safety standards for battery manufacturing and use. They actively participate in global forums and regulatory bodies to share their knowledge and advocate for higher safety protocols across the industry.
-
Collaborations with Safety Organizations: Through partnerships with safety and environmental organizations, Himax contributes to the ongoing development of safer battery recycling and disposal methods, ensuring that their commitment to safety extends throughout the battery lifecycle.
-
Conclusion: Elevating Safety in Lithium-Ion Battery Technology with Himax Electronics
As the demand for more powerful and efficient batteries continues to grow, so does the need for enhanced safety measures. Despite its vast benefits, LI-ION BATTERY comes with inherent risks that must be carefully managed. The potential for thermal runaway and explosions, while rare, underscores the importance of continuous innovation in battery technology and safety protocols.
Himax Electronics stands at the forefront of this critical field, not only adhering to established safety standards but actively driving new developments that set the bar higher across the entire industry. Through rigorous testing, advanced battery management systems, and cutting-edge research into safer materials and designs, Himax is shaping a future where battery-related hazards are significantly mitigated.
