Product Description:

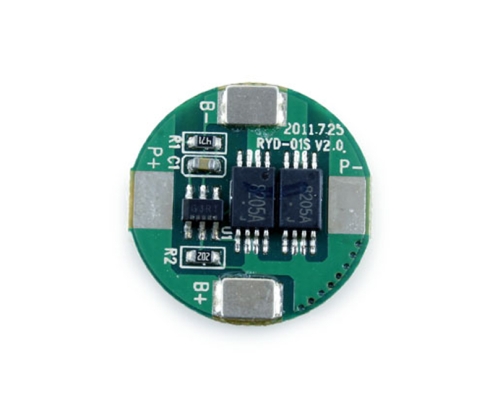

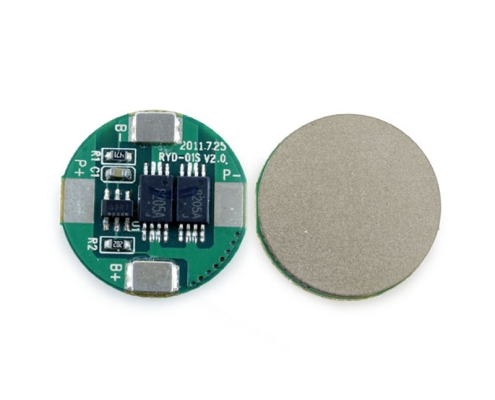

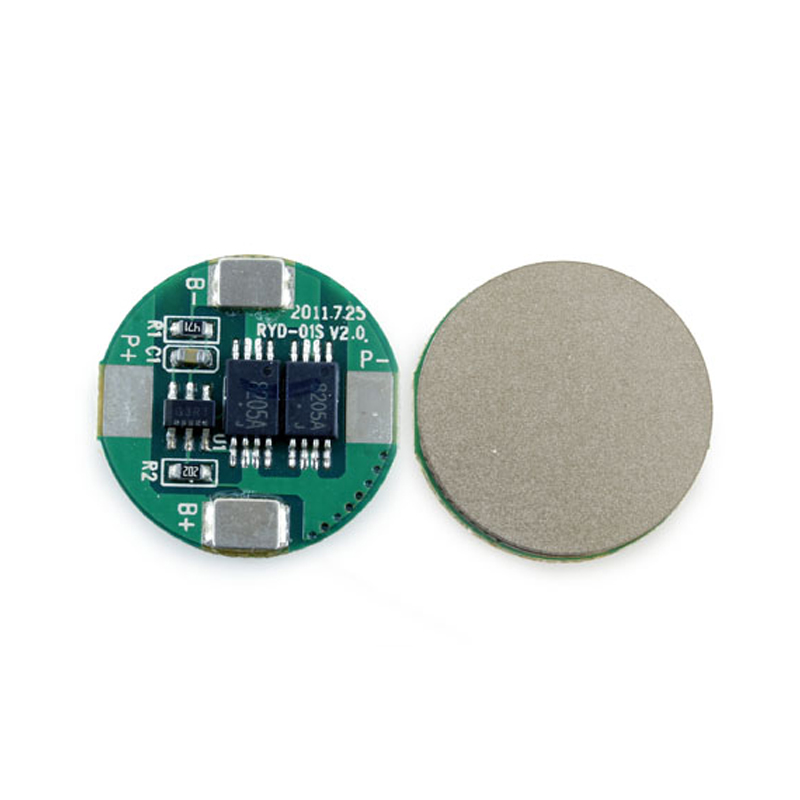

The protection board (PCB) is for 1S custom lithium battery pack, it can be used for Li-ion/Li-polymer batteries.
Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.

Technical Parameters:

Item	Content	Criterion
Over Charge Protection	Over charge detection voltage	4.275±0.025V
	Over charge detection delay time	/
	Over charge release voltage	4.075±0.025V
Over Discharge Protection	Over discharge detection voltage	2.5±0.05V
	Over discharge detection delay time	/
	Over discharge releas voltage	2.9±0.05V
	Rated operational current	≤3.5A
Over Current Protection	Over current detection current	6.5±2A
	Release condition	Cut Load
	Detection delay time	7.2～11.0ms
Short Protection	Detection condition	Exterior Short Circuit
	Protection	/
	Release condition	Cut short circuit
Balance	Balanced open voltage	/
	Balanced release voltage	/
	Balanced current	/
Temperature Protection	Operation temperature	/
Temperature Protection	Recovery temperature	/
Interior Resistance	Main loop electrify resistance	Rss≤65mΩ
Current Consumption	Current consume in normal operation	8.0μA Max
NTC	10kOhm 3380 1% NTC	/
*Dimension (LWH)*	R17.3 x 2.5mm

Usage and Attention:

After purchasing the protection mold, users should connect lines in compliance with the instruction. Voltage usually exists in the battery, so operators should peel one line and then connect another starting from B-. Lines should be connected from the low position to the high position with no mistake of order, or the irreparable damage could be caused.
When lines get connected, bits of copper and tin should not cling to the guard shield.
Protection board should be connected to battery group with compliance to specifications and any leading line should not be put on the back of the board but on the lateral side.
When equipping the guard shield, hard epoxy sheer should be fixed on the back of the board as the barrier to prevent the squeezing against short circuit.
When welding output lines, power supply line with the proper diameter should be chosen to prevent great temperature rising and great dropping of line voltage while high current discharges.
The guard shield is usually fixed in the battery box, insulation, heat relief and tightness should be greatly concerned, or the internal short circuit could lead to some danger.
The full-charged battery group should be put properly out of children touch.
If any unusual condition appears during the using process, please stop using the product immediately.
