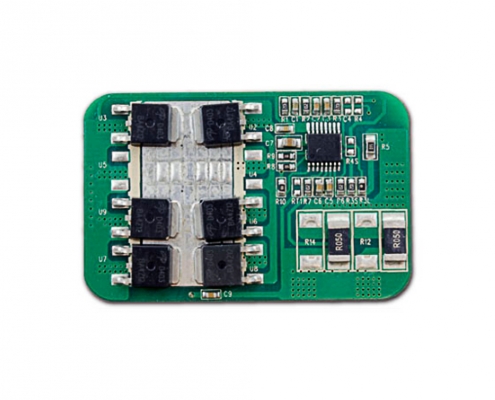

Custom lithium battery pack protection circuit module for 3 cells

Protection Circuit Module For 3 Cells Custom Lithium Battery Pack

Protection Circuit Module For 3 Cells Custom Lithium Battery Pack

Custom lithium battery pack protection circuit module for 3 cells

Product Description:

Application

The BMS for custom lithium battery pack could be widely used in the fields of electric devices, electric vehicles, standby power supply and power supply of military equipment, etc.

Main Functions

Function of over charge protection: once voltage of any battery in the group gets higher than the over charge protection point, charge cuts off to ensure all batteries work within the over charge protection point.
Function of over discharge: once voltage of any battery in the group gets lower than the over charge protection point, discharge cuts off to ensure all batteries work beyond the over charge protection point.
Function of over current: during the discharge process of battery group, once discharge current gets over the set over current protection point, output cuts off to ensure battery group works within the safe limit of current.
Function of short circuit protection: once battery group’s output port appears the condition of short circuit, it cuts off to ensure battery pack not to be damaged because of short circuit.
Function of voltage balancing: in the late charging period of battery group, voltage difference that appears during the using process of each battery could get balancing revised to ensure battery group’s capacitance.

Technical Parameters:

Item	Content	Specification
Over charge protection	Over charge detection voltage	3.90V±0.025V
	Over charge detection delay time	1.0±0.5s
	Over charge release voltage	3.80V±0.05V
Over discharge pretection	Over discharge detection voltage	2.3±0.08V
	Over discharge detection delay time	100±50ms
	Over discharge release Voltage	2.7V±0.1V
	Rated operational current	≤15A
Over current protection	Over current detection current	30±5A
	Detection delay time	10±5ms
Short protection	Detection condition	Exterior short circuit
	Release condition	Cut short circuit
Resistance	Main loop electrify resistance	≤55mΩ
	Balanced differential pressure open voltage	≥30mV
	Balanced differential pressure off voltage	≤10mV
	Balanced current	Max: 95mA
Current consumption	Current consume in normal operation	50.0μA Max
Dimension (mm)	50 x 32 x 4mm
