LiFePO4 Battery Guide: Voltage Chart, Charging & Storage Tips

LiFePO4 batteries (lithium iron phosphate batteries) are shining bright in 2025, thanks to their top-notch safety, long lifespan, and eco-friendly vibes. From electric vehicles and home energy storage to outdoor gear, LiFePO4 batteries are everywhere. But how do you use, charge, and store these powerhouses to get the most out of them? This guide dives deep into the LiFePO4 battery voltage-SOC (State of Charge) chart, charging best practices, and storage must-knows, giving you everything you need to make your lithium iron phosphate battery last.

What Are LiFePO4 Batteries? Core Benefits Explained

The Basics of LiFePO4 Batteries

A LiFePO4 battery is a type of lithium-ion battery with a lithium iron phosphate cathode. Its rock-solid chemistry delivers a steady 3.2V per cell and a lifespan of 2,000-5,000 cycles. Compared to old-school lead-acid or ternary lithium batteries, lithium iron phosphate batteries are safer at high temps, with a low risk of thermal runaway, and they’re free of heavy metals, aligning with green trends.

Key Specs:

Nominal Voltage: 3.2V (per cell).
Capacity Range: Typically 50Ah-300Ah, fitting various devices.
Depth of Discharge: Safe to drain up to 80%-100%, way better than lead-acid’s 50%.

Why Go for LiFePO4 Batteries?

Safety First: No explosions or fires, perfect for home storage or EVs.
Longevity: Lasts 5-10 times longer than lead-acid, saving you money.
Lightweight: Weighs a third of lead-acid batteries for the same capacity, great for portable gear.
Eco-Friendly: No cadmium or lead, matching 2025’s push for clean energy.

Use Cases: Electric bikes, solar storage, camping power, marine applications, and more.

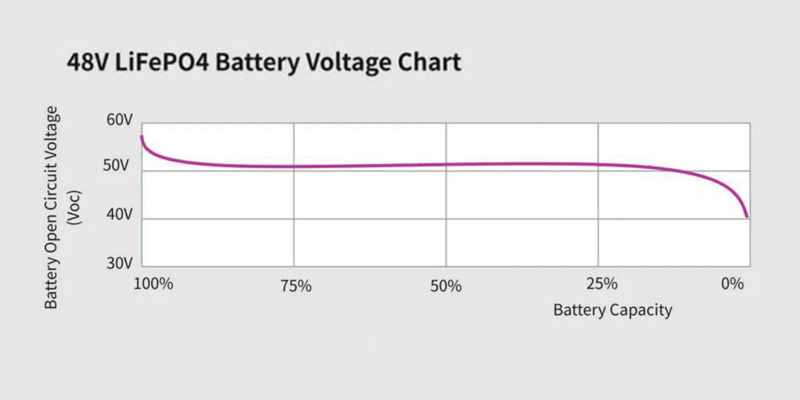

Voltage-SOC Chart: Know Your Battery’s Status

Why You Need a Voltage-SOC Chart

The SOC (State of Charge) shows how much juice your LiFePO4 battery has left, and voltage is the go-to clue for figuring it out. A voltage-SOC chart helps you track battery health, avoid overcharging or deep discharging, and stretch its lifespan. Below is a reference chart for a single LiFePO4 battery cell (3.2V nominal) at 77°F with no load:

SOC (%)	Voltage (V)
100	3.60-3.65
90	3.35-3.40
80	3.32-3.35
70	3.30-3.32
50	3.27-3.30
30	3.25-3.27
20	3.20-3.25
10	3.00-3.20
0	2.50-3.00

Heads-Up: Voltage varies with temperature, load, and battery age. Pair with a BMS (Battery Management System) for precise SOC readings.

How to Use the Voltage-SOC Chart

Daily Monitoring: Check voltage with a multimeter or BMS and match it to the chart. For example, 3.32V means about 80% SOC.
Prevent Over-Discharge: Recharge when SOC dips below 10% (voltage <3.0V) to avoid damage.
Calibrate Your BMS: Fully charge to 3.65V and discharge to 20% (3.20V) monthly to keep SOC accurate.

Real-World Example: A camper using a 100Ah LiFePO4 battery noticed the voltage hit 3.25V (around 30% SOC) and recharged in time, saving the battery from harm.

Charging Smarts: Boost Performance and Longevity

Recommended Charging Specs

Charging your LiFePO4 battery right is key to maxing out its life. Here’s the 2025 playbook:

Charging Voltage: 3.50-3.65V per cell (aim for 3.60V); too high risks overcharging.
Charging Current: 0.2C-0.5C (e.g., 20A-50A for a 100Ah battery); 1C for fast charging.
Charging Mode: Use CC-CV (constant current, constant voltage)—charge at constant current to 3.60V, then hold voltage until current drops to 0.05C.
Charging Temperature: 32°F-113°F, best at 77°F; preheat for cold charging.

Gear Tip: Grab a smart charger designed for LiFePO4 batteries, steering clear of ternary lithium or lead-acid settings.

Charging Do’s and Don’ts

Avoid Overcharging: Install a BMS with overvoltage protection (3.65V per cell) to prevent swelling.
Balance Charging: For multi-cell packs, balance monthly to keep voltages even.
Limit Fast Charging: Use 1C charging only when rushed—frequent fast charges may shorten life.
Charge Regularly: Keep SOC between 20%-90% for longer cycles; shallow charge-discharge is best.

Stat: LiFePO4 batteries kept at 20%-90% SOC last 30% longer than those fully charged often.

Storage Essentials: Keep Your Battery in Top Shape

Short-Term Storage (1-3 Months)

For short-term LiFePO4 battery storage, follow these steps:

Charge Level: Store at 50%-60% SOC (around 3.27-3.30V) to avoid full depletion.
Environment: Keep at 59°F-77°F, humidity <70%, away from direct sun or dampness.
Check-Ups: Monthly voltage checks—if below 3.20V, top up to 3.30V.

Example: A boater stored a LiFePO4 battery at 50% SOC in a dry cabin, and after three months, it was still good as new.

Long-Term Storage (Over 3 Months)

Long-term storage needs extra care:

Starting Charge: Charge to 50%-60% (3.27-3.30V).
Conditions: Store at 32°F-95°F, ideally 50°F-68°F; avoid freezing or extreme heat.
Maintenance: Every three months, check and recharge to 50% to counter self-discharge (1%-2% monthly).
Moisture Protection: Use a sealed plastic case or moisture-proof bag to shield terminals.

Warning: If a LiFePO4 battery’s SOC hits 0% during long-term storage, it risks permanent damage from deep discharge.

Frequently Asked Questions (FAQs)

Q1: How do I use the voltage-SOC chart for LiFePO4 batteries?
A: Measure your LiFePO4 battery’s voltage with a multimeter and check the chart—like 3.35V for ~90% SOC. A BMS gives sharper readings.

Q2: Is it okay to fully charge a LiFePO4 battery daily?
A: Not ideal. Keep SOC at 20%-90% for longer life; full charge to 3.65V monthly to balance the lithium iron phosphate battery.

Q3: Are LiFePO4 batteries good in cold weather?
A: Charging below 32°F needs preheating, or capacity drops. LiFePO4 batteries handle discharging at -4°F but lose some efficiency.

Q4: How do I safely store a LiFePO4 battery?
A: Store at 50% SOC in a dry 59°F-77°F spot, recharging to 3.30V every three months to avoid over-discharge.

Q5: Where can I buy quality LiFePO4 batteries?
A: HIMAX offers certified LiFePO4 batteries with reliable performance and solid support for all sorts of uses.

Q6: Can LiFePO4 batteries be connected in series?
A: Yes, LiFePO4 batteries can be wired in series, but keep these in mind:

Voltage Matching: Ensure all cells have similar voltage, capacity, and internal resistance to avoid overcharging or over-discharging.
Balancing Protection: Use a BMS with active balancing to keep cell voltages aligned.
Charger Compatibility: Choose a charger matched to the total voltage (e.g., 12.8V for 4 cells in series).

Q7: What’s the discharge current capacity of LiFePO4 batteries?
A: The discharge current depends on the battery’s rating (C-rate) and design:

Standard Models: Handle 1C-3C continuous discharge (e.g., 100A-300A for a 100Ah battery).
High-Rate Models: Up to 5C-10C (500A-1000A for 100Ah, short bursts), though it may reduce lifespan.
Peak Surge: Some power batteries can hit 15C-30C (seconds-long bursts).

Power Up with HIMAX LiFePO4 Batteries

LiFePO4 batteries are the go-to for 2025, blending safety, durability, and eco-friendliness. By mastering the voltage-SOC chart, fine-tuning your charging routine, and nailing storage, you’ll get the most out of your lithium iron phosphate battery. HIMAX’s LiFePO4 battery lineup offers 50Ah-300Ah options, built with premium lithium iron phosphate and smart BMS for top performance and safety. Priced from $100-$1,000, they’re perfect for EVs, solar setups, and outdoor adventures, backed by a 2-year warranty and expert support.
