Can We Connect Lead Acid and LiFePO4 Batteries in Parallel?

lifepo4-battery-12v-600ah

Connecting lead acid and LiFePO4 (Lithium Iron Phosphate) batteries in parallel is generally not recommended due to significant inherent differences, but can be technically feasible with careful management.

Key Challenges & Risks:

Voltage Discrepancy:

  • Nominal Voltage: Lead acid batteries (e.g., 12.6V fully charged for a 6-cell) have a slightly different nominal voltage than LiFePO4 batteries (e.g., 12.8V for a 4-cell). This minor difference can cause current flow between batteries and imbalance during charging and discharging, leading to one battery constantly trying to charge or discharge the other.
  • Voltage Sag: During high discharge, lead acid batteries experience a more pronounced voltage sag, further complicating parallel operation.

Charging Requirements:

  • Charge Voltage Profiles: Lead acid batteries require a multi-stage charging process (bulk, absorption, float), while LiFePO4 batteries need a precise Constant Current/Constant Voltage (CC/CV) charge profile.
  • Overcharging/Undercharging: A charger optimized for one type will likely damage or undercharge the other when connected in parallel, leading to reduced lifespan and safety hazards.

Discharge Characteristics & Capacity:

  • Discharge Rates: LiFePO4 batteries can sustain higher discharge rates with less voltage drop. When paralleled, the LiFePO4 often carries a disproportionately higher load, potentially leading to over-discharging of the lead acid or premature shutdown by the LiFePO4’s internal BMS.
  • Usable Capacity: LiFePO4 batteries offer nearly 100% usable capacity, whereas lead acid typically offers only 50-70%. This disparity complicates energy management in a mixed system.

Internal Resistance & Health:

  • Internal Resistance: Different chemistries have varying internal resistance. This affects how current is shared and can lead to uneven loading and heating.
  • Battery Degradation: Mixing batteries of different ages, health, or types accelerates battery degradation for all connected cells due to the constant stress of imbalance.

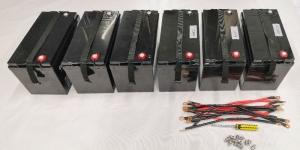

lifepo4-battery-series-and-parallellifepo4-battery-series-and-parallel

Risks Involved:

  • Safety Hazards: Imbalances can cause overheating, thermal runaway (especially for LiFePO4 if improperly charged), or battery swelling, leading to damage or fire.

  • Reduced Efficiency: Energy is lost managing the inherent imbalances, decreasing overall system efficiency.

  • Shortened Lifespan: Both battery types operate outside their optimal parameters, significantly reducing their expected cycle life.

Best Practices and Alternatives:

  • Separate Systems: The safest and most efficient approach is to maintain separate battery banks for each chemistry.

  • Advanced BMS: For unavoidable mixed setups, a highly sophisticated, custom Battery Management System (BMS) is essential. This advanced BMS must be capable of independent monitoring, cell balancing, and charge/discharge control for each battery type simultaneously.

How Himax Electronics Can Help:

Himax Electronics specializes in custom BMS solutions that can manage complex, mixed-chemistry energy storage systems. Our expertise helps design configurations that prioritize safety and efficiency, mitigating the inherent risks of parallel connections between disparate battery chemistries.

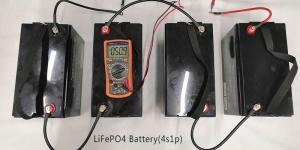

4s-lifepo4-battery
