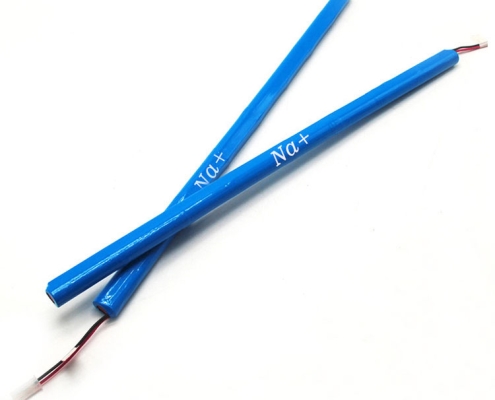

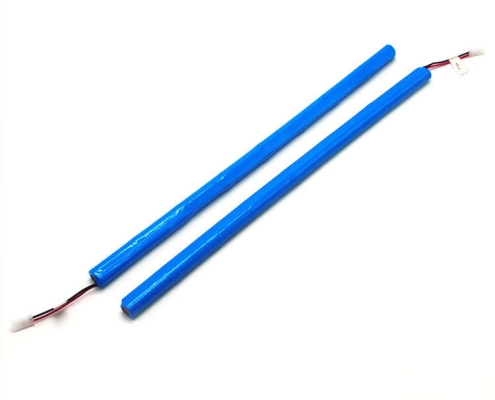

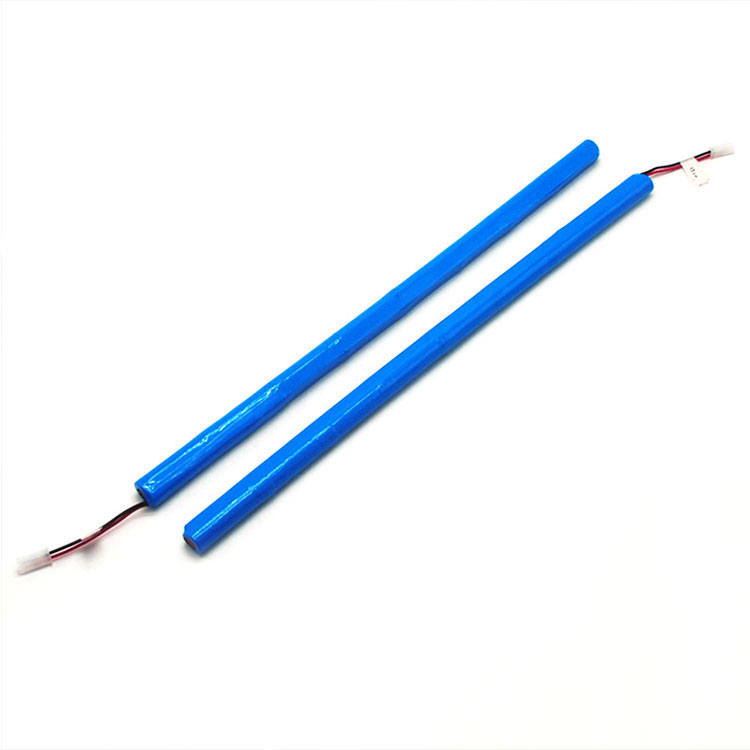

Sodium-ion Battery Pack 12.4V 2.6Ah for Custom Energy Storage Applications

12.4V 2.6Ah sodium-ion battery pack for renewable energy & backup power. Wholesale custom solutions for industrial use, factory-direct.

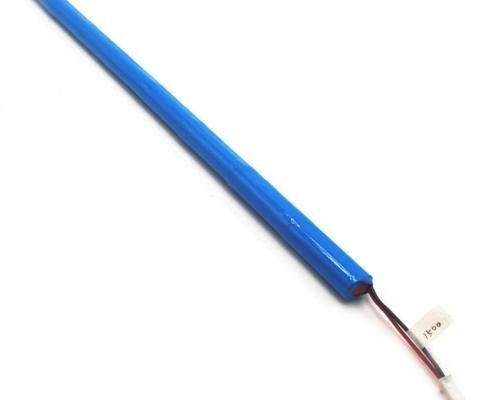

Product Model: Sodium-ion Battery 12.4V 2600mAh

Product Description:

Save you money

Sodium is more abundant and widely used, which can reduce the production cost of sodium-ion batteries. This will be a good money-saving investment.

Good safety performance

Sodium-ion batteries are considered safer than lithium-ion batteries in terms of thermal stability. Sodium is less reactive than lithium, reducing the risk of thermal runaway and potential safety hazards.

Environmentally friendly

Sodium-ion batteries are more environmentally friendly than lithium-ion batteries. Using sodium as a battery material could reduce reliance on lithium mining, which can have environmental impacts. Additionally, sodium-ion batteries are easier to recycle and have a lower overall environmental impact.

Sodium-ion Battery Wholesale

Himax provides high-quality sodium-ion batteries for bulk wholesale in industries like energy storage. These batteries offer superior safety, long cycle life, and cost-effectiveness. Ideal for large-scale projects, we offer customizable solutions to meet your specific requirements.

Technical Parameters:

Part Number	Sodium ion 12.4V 2600mah rechargeable pack
MAIN PARAMETER
Rated Capacity	2600mAh
Nominal Voltage	12.4V
Max Charge Voltage	15.6V
Discharge Cut Off Voltage	6V
Charging Current	0.52A-1.3A
Max. Continuous Discharging Current	2.6A
Cycle Life	≥3000 cycles
Discharge Rate	NA
MECHANICAL SPECIFICATIONS
Dimensions (TWH)	Max 5372519.1mm
Weight	Approx 347g
Encapsulation	Customized is available
OTHERS
Operating Temperature	Charging: -10°C~45°C/Discharging: -30°C~60°C
Storage Temperature	-20 ~40℃
Humidity	5% to 95% relative humidity
Certification	CE/RoHS/MSDS/UN38.3
Main protection function	Overcharge, over discharge, over current, short circuit, etc.
Delivery period	7-20 days, depending on stock and quantity.
Warranty	One year
APPLICATIONS
1) Motorized Curtains 2) Motorized Toys 3) Water Storage Pump System

FAQ

1. What is sodium-ion battery?
Sodium-ion battery is an energy storage device similar to a lithium-ion battery, but its electrode material contains sodium ions instead of lithium ions. Sodium-ion batteries typically have higher conductivity and lower cost than lithium-ion batteries, but their energy density may be lower.

2. What are the advantages/ disadvantages of sodium-ion batteries?
Advantages of sodium-ion batteries include lower cost, abundant materials, environmental friendliness, and renewable resources. Disadvantages of sodium-ion batteries may include lower energy density, shorter cycle life, and safety and stability issues that have not been fully addressed.

3. What is the cycle life of sodium-ion batteries?
The cycle life of a sodium-ion battery depends on a variety of factors, including electrode material, charge/discharge rate, temperature, and cycle depth. In general, the cycle life of a sodium-ion battery should be able to meet the needs of a particular application.

4. How safe are sodium-ion batteries?
The safety of sodium-ion batteries has always been a concern. Compared with lithium-ion batteries, sodium-ion batteries may have some challenges in terms of safety, especially in terms of the heat and chemical reactions that may be generated during charging and discharging. Therefore, the safety of sodium-ion batteries needs to be ensured through design optimization and rigorous testing.

5. What is the charging and discharging efficiency of sodium-ion batteries?
The charge/discharge efficiency of sodium-ion batteries refers to the loss of battery energy during charging and discharging, usually expressed as a percentage. Currently, the charging and discharging efficiency of sodium-ion batteries is generally between 80% and 90%, depending on factors such as the design of the battery, choice of materials, operating conditions, and charging and discharging rates. With the advancement of technology and in-depth research, it is expected to further improve the charging and discharging efficiency of sodium-ion batteries in the future to meet the needs of a wider range of applications.

6. What is the commercial value of sodium-ion batteries?
a. Cost-effectiveness: Sodium-ion batteries typically have lower material costs relative to lithium-ion batteries. Sodium is abundant in the earth’s crust and its price is relatively stable, thus reducing the manufacturing cost of batteries, which is attractive in large-scale energy storage projects.

b. Resource Abundance: Sodium is more abundant in the earth’s crust and more widely available than lithium. This means that the production of sodium-ion batteries is less likely to be constrained by resource availability, helping to ensure a stable supply of batteries and cost control.

c. Application Diversity: Sodium-ion batteries can be used in a variety of applications including, but not limited to, energy storage, electric vehicles, mobile devices, and aerospace. Their relatively low cost and resource availability make them potentially commercially viable in a variety of industries.

d. Sustainability: The production and utilization of sodium-ion batteries is relatively environmentally friendly, as sodium is abundant and renewable, making it more sustainable than some of the environmental issues that may be associated with lithium mining.

e. Technological innovation: With the continuous advancement of sodium-ion battery technology, such as the improvement of electrode materials, the optimization of battery design and the improvement of production process, sodium-ion batteries are expected to become an important solution for energy storage and electric transportation in the future, thus creating commercial value.

7. Can Himax Battery Factory provide customized sodium and lithium ion battery packs?
Yes, Himax Battery Factory is able to provide customized services for sodium lithium-ion battery packs, including solution design, shape, performance customization, safety considerations and manufacturing. Through the customization service, Himax Battery Factory can provide customized battery solutions according to your specific needs to meet the demands of different applications.

8. What are the application areas for sodium-ion batteries?
Sodium-ion batteries can be used in many applications, including electric vehicles, energy storage systems, and portable electronic devices.

Documentation

Download

Sodium-ion Battery Wholesale

Your Grade A Battery Supplier

When purchasing wholesale sodium ion battery from Himax, you’re guaranteed superior quality, reliability, and cost-effectiveness at every stage. Every sodium ion battery undergoes a thorough pre-sale inspection to ensure it meets the highest standards of performance, durability, and safety. This guarantees that the sodium-ion batteries you order are made from premium materials and undergo rigorous testing for reliability.

At Himax, we specialize in custom sodium ion battery packs tailored to your exact needs, providing solutions for industries such as drones, RC vehicles, and robotics. With high energy density and fast discharge rates, sodium ion batteries are ideal for applications requiring power efficiency and high performance. Our advanced BMS technology ensures protection against overcharging, short circuits, and overheating, delivering optimal safety. For bulk orders, our custom solutions offer an affordable and efficient option that meets your business needs, while detailed usage guidelines maximize battery lifespan and efficiency.

For bulk buyers, Himax stands out among LiPo battery suppliers by offering competitive wholesale pricing, along with comprehensive after-sales support, warranties, and technical assistance. Whether you need custom battery designs or long-term service agreements, we are dedicated to delivering cost-effective, reliable sodium-ion battery solutions that perform flawlessly over time.

IMPORTANT: PRE-USE GUIDELINES

DO: Perform a Pre-Installation Check!

Ensure a thorough examination before installation:

Inspect Each Cell: Visually check for any damage, swelling, leaks, or missing accessories. Do not use a cell if the casing is pierced, leaking, cracked, or otherwise visibly damaged.

Clean the Terminals: Ensure bus bars, wire terminal lugs, and terminals are clean and free from corrosion or debris. This reduces resistance between the DC terminal and cable connection.

Test Voltage and Capacity: Use a multimeter to check each cell’s voltage and internal resistance, and a battery analyzer or specialized tester to confirm capacity.

Top Balance Before Use: Charge all cells to full voltage before assembling them. We recommend using chargers designed specifically for LiPo cells.

DON’T:

Do Not Discharge Immediately After Delivery: Allow the battery to settle before use.

Do Not Mix Cells from Different Series: Even if they are the same type and capacity, avoid mixing cells from different manufacturing series or batches.

Avoid Loose Terminal Connections: Ensure all terminals are securely fastened to prevent performance issues.

Sodium-ion batteries are cost-effective, environmentally friendly, and scalable, with sodium’s abundance and lower cost making them a promising alternative to lithium-ion batteries for larger energy storage needs.

Sodium-ion Battery Pack 12.4V 2.6Ah for Custom Energy Storage Applications

Product Model: Sodium-ion Battery 12.4V 2600mAh

Product Description:

Sodium-ion batteries are cost-effective, environmentally friendly, and scalable, with sodium’s abundance and lower cost making them a promising alternative to lithium-ion batteries for larger energy storage needs.
