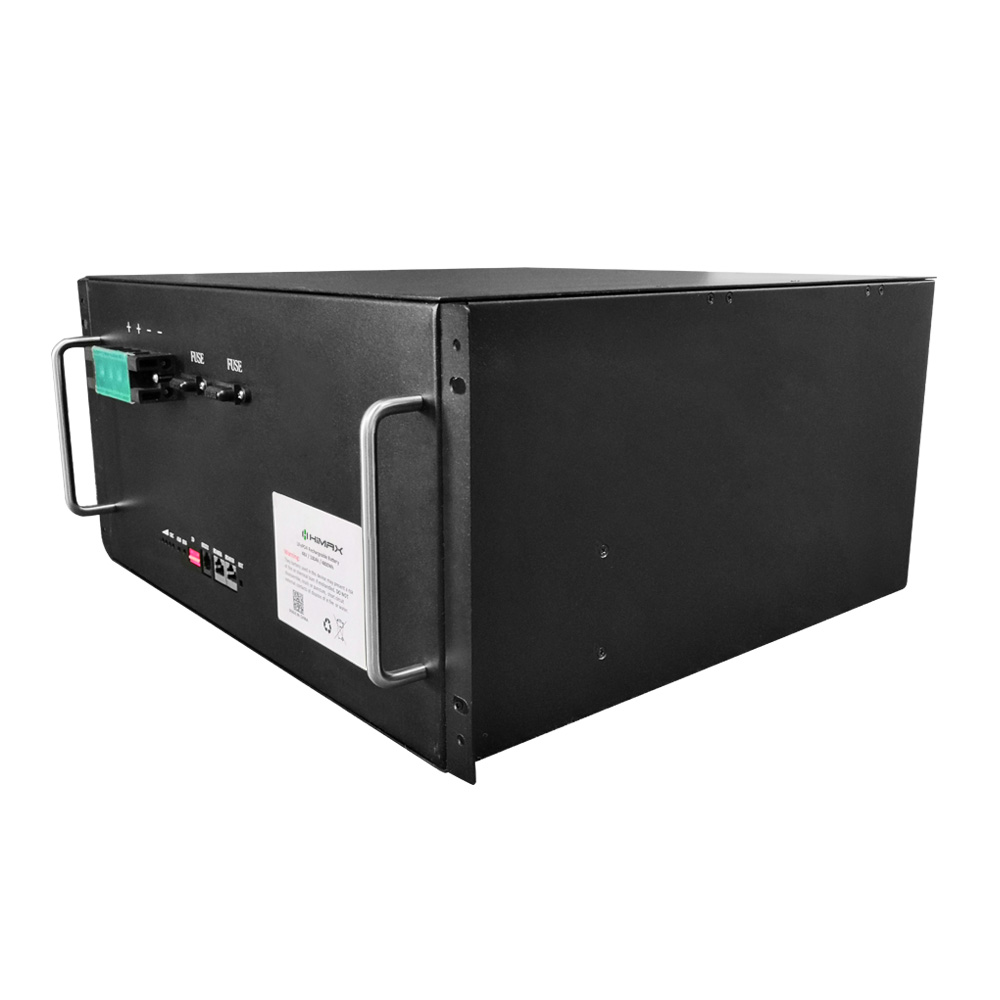

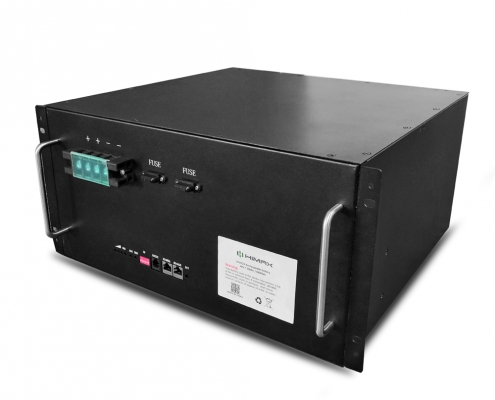

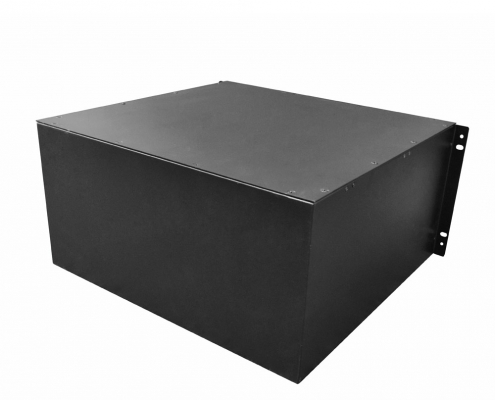

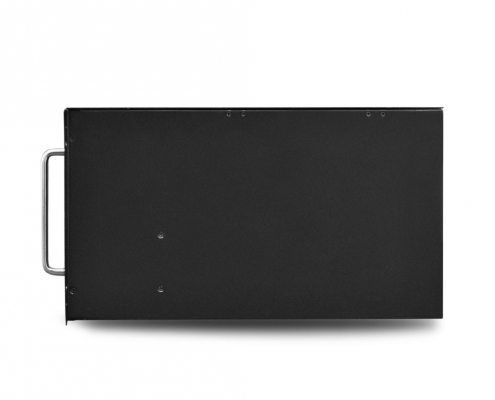

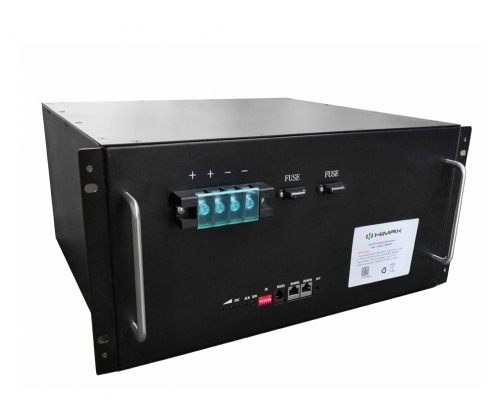

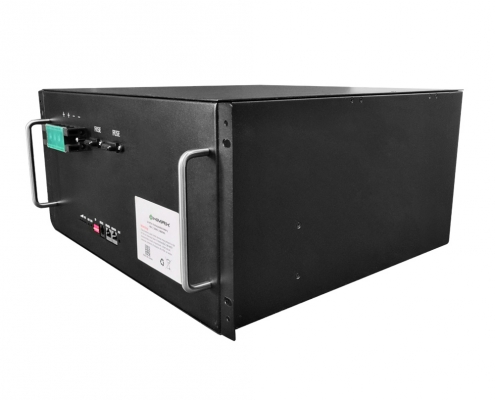

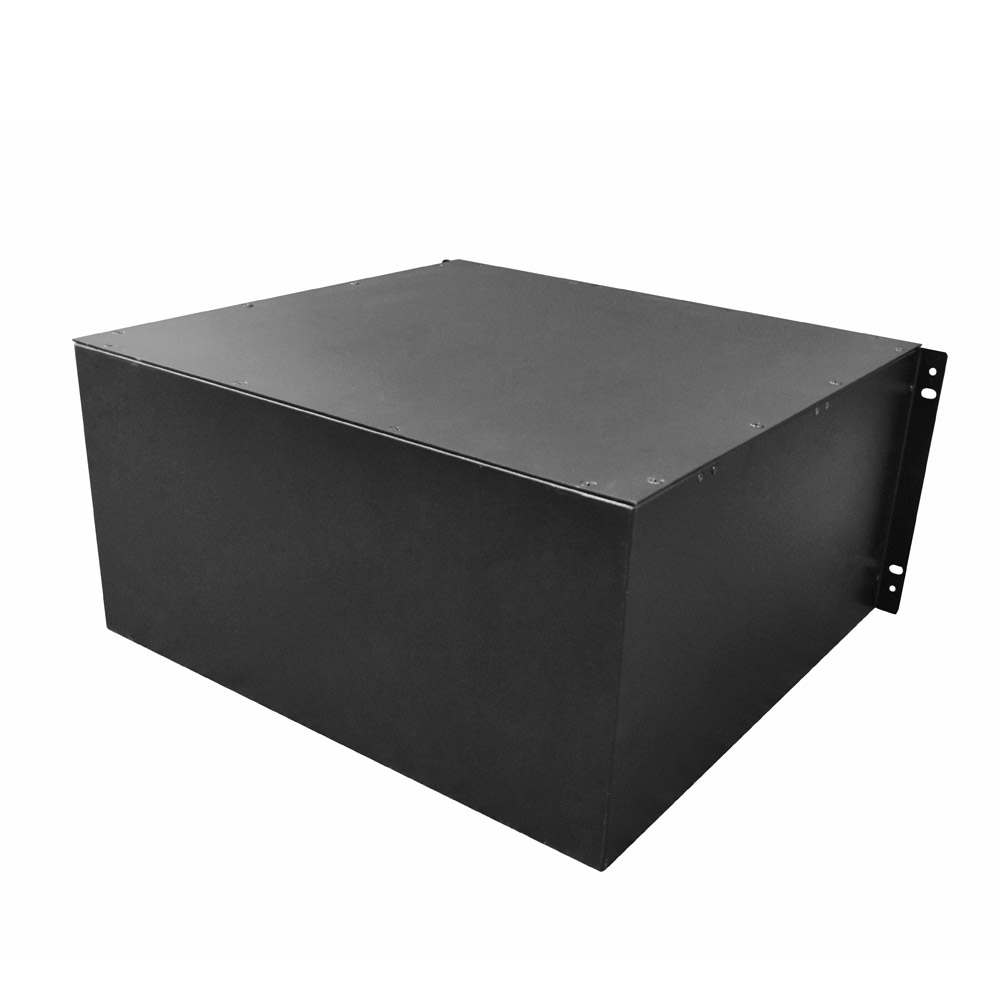

48V 100Ah Lifepo4 Battery Pack

Product Model: IFR 48V 100Ah Lifepo4 5U Telecom Battery Pack

Product Description:

Safety and economical

Each battery has built in PCM protection board from Over-discharge, Over-charge, Short Circuit etc….

LiFePO4 battery is Environmentally friendly, which will not destroy the ecological environment, also have no memory effects.

Excellent discharge characteristics

Have low internal resistance and high flat voltage characteristics during strong current discharge, which ensures a wider application field.

Long cycle life

Provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.

Technical Parameters:

Part Number	LiFePO4 Lithium Batteries 48V 100Ah (5kwh) Telecom / Solar Battery
MAIN PARAMETER
Rated Capacity	100Ah
Nominal Voltage	48V
Max Charge Voltage	53.5V
Discharge Cut Off Voltage	42V
Charging Current	20A-33A
Max. Continuous Discharging Current	33A
Cycle Life	≥2000 cycles
Discharge Rate	≤3%
MECHANICAL SPECIFICATIONS
Dimensions (TWH)	483385222.5mm / Customized
Weight	48Kg
Encapsulation	Customized is available
OTHERS
Operating Temperature	Charging: 0~45℃/Discharging:-20 ~60℃
Storage Temperature	-20 ~60℃
Humidity	5% to 95% relative humidity
Certification	CE/RoHS/MSDS/UN38.3
Main protection function	Overcharge, over discharge, over current, short circuit, etc.
Delivery period	7-20 days, depending on stock and quantity.
Warranty	One year
APPLICATIONS
1) Energy Storage: UPS , backup ,power station 2) Intelligent Robots 3) EV : Electric scooters 4) Solar System, Wind Energy Storage, Solar/Storage Home System, Solar Street Light 5) General Energy Storage (Such as: Back-up Power, Miner’s lamp, portable power supply, digital products etc.)
