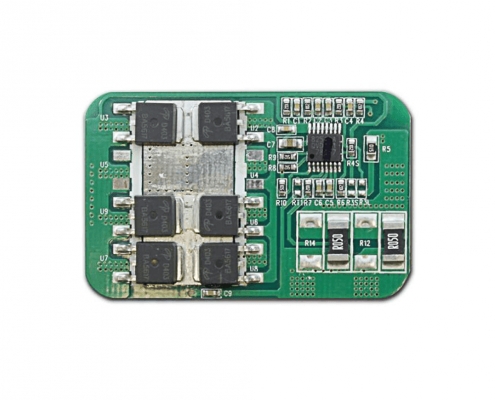

BMS IFR-48-482304-2560

BMS

Terminal explanations

B3：Connected to the third battery’s positive terminal
B2：Connected to the second battery’s positive terminal
B1：Connected to the first battery’s positive terminal
B+：Connected to the fourth battery’s positive terminal
B-：Connected to the battery’s negative terminal
P+：Connected to the battery’s output or the charger’s positive terminal
P-：Connected to the battery’s output or the charger’s negative terminal
T：No connected

Technical Parameters:

Item	Content	Criteria
Over Charge Protection	Over Charge Detection Voltage	3.90±0.025V
	Over Charge Release Voltage	3.80±0.05V
	Over Charge Detection Delay Time	1.0±0.5s
Over Discharge Protection	Over Discharge Detection Voltage	2.3±0.08V
	Over Discharge Detection Delay Time	100±50ms
	Over Discharge Release Voltage	2.7±0.1V
	Rated Operational Current	≤15A
Over Current Detection	Over Current Detection current	30±5A
Over Current Detection	Detection Delay Time	10±5ms
Short Circuit Protection	Detection Condition	Exterior short circuit
Short Circuit Protection	Release Condition	Cut short circuit
Interior Resistance	Main Loop Electrify Resistance	RDS≤55mΩ
Current Consumption	Current Consumed in normal Operation	50.0μA Max
PCB Dimension	50324mm
