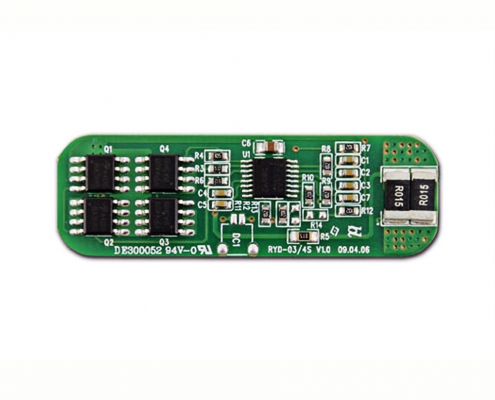

4S BMS for Lithium Battery Pack – E-Bikes, Portable Electronics & Energy Storage

Wholesale Custom 4S BMS for Lithium Battery Pack Applications

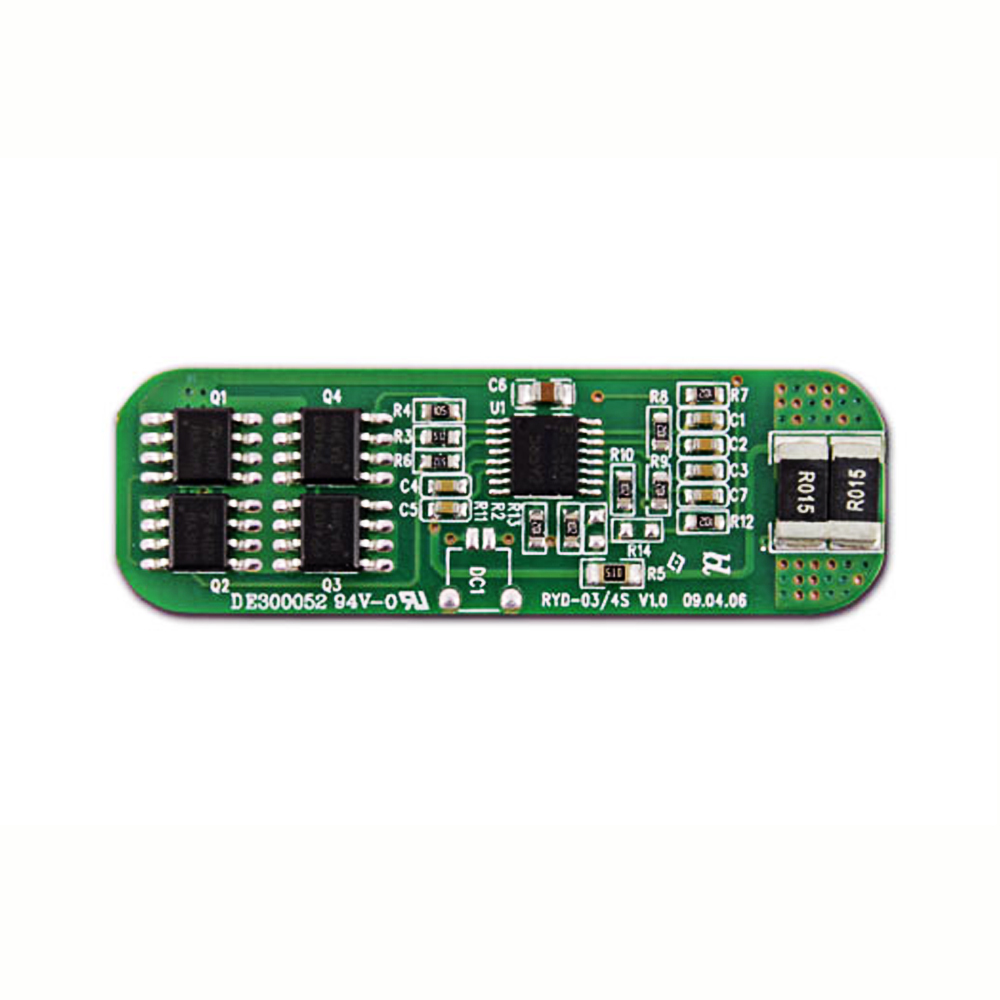

Product Model: 4S BMS 14.8V Li ion Protection Module

Product Description:

The protection board is for 4S custom lithium battery pack, it can be used for Li-ion/Li-polymer batteries.
Stable various protective functions for charging and discharging, such as accurate overcharge protection, over-discharge protection, over current protection and short circuit protection.

High-Performance li-ion battery with custom solutions

Himax premium Li-ion batteries by Himax offer high energy density, long cycle life, and safe, reliable performance for various applications. We provide custom battery packs and bulk orders at competitive wholesale prices to meet your needs.

Technical Parameters:

Item		Custom Lithium Battery Pack BMS
Over charge protection	Over charge detection voltage	3.90V±0.025V
	Over charge detection delay time	1.0±0.5s
	Over charge release voltage	3.80V±0.05V
Over discharge pretection	Over discharge detection voltage	2.3±0.08V
	Over discharge detection delay time	100±50ms
	Over discharge release Voltage	2.7V±0.1V
	Rated operational current	≤10A
Over current protection	Over current detection current	30±5A
	Detection delay time	10±5ms
Short protection	Detection condition	Exterior short circuit
	Release condition	Cut short circuit
Resistance	Main loop electrify resistance	≤55mΩ
	Balanced differential pressure open voltage	≥30mV
	Balanced differential pressure off voltage	≤10mV
	Balanced current	Max: 95mA
Current consumption	Current consume in normal operation	50.0μA Max
Dimension (mm)	50 x 32 x 4mm

Features and Benefits

Apply for 4 cells li-ion / li-polymer batery pack protection
Internally trimmed charge and discharge voltage limits
Discharge current limit detection
Low current standby mode when cells are discharged
High quality and high yield: 100% tested before shipment
Dimension: 50 x 16 x 3.5 mm
Compatible with both Li-ion and Li-Polymer cells

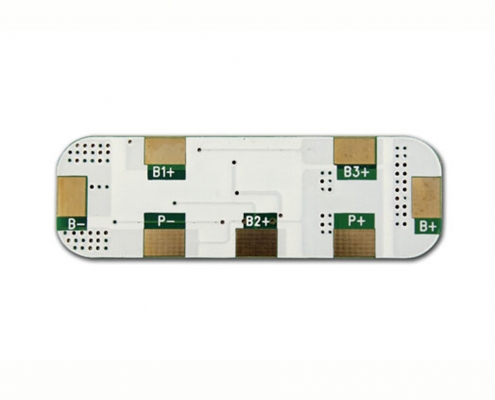

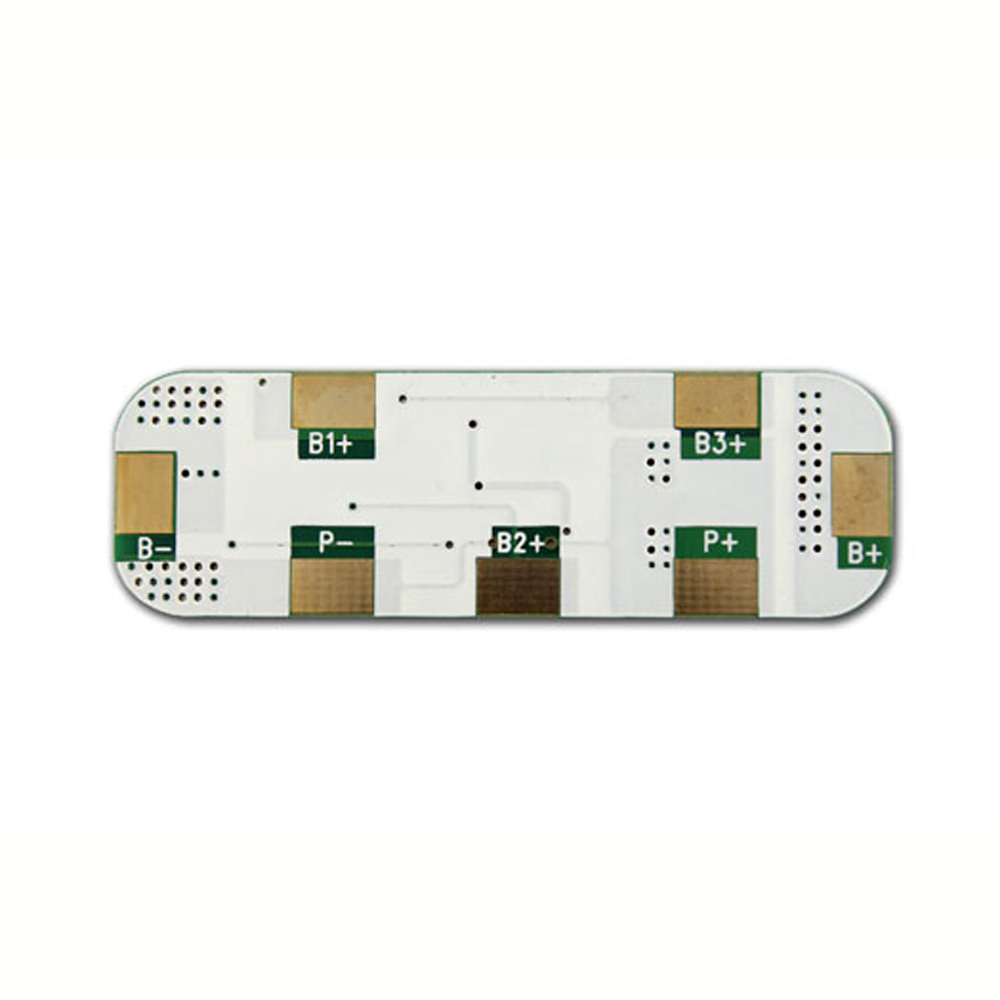

B+：Connected to the fourth battery’s positive terminal
B3+：Connected to the third battery’s positive terminal
B2+：Connected to the second battery’s positive terminal
B1+：Connected to the first battery’s positive terminal
B-：Connected to the first battery’s negative terminal
P+：Connected to the battery’s output or the charger’s positive terminal
P-：Connected to the battery’s output or the charger’s negative terminal

Usage and Attention:

After purchasing the protection mold, users should connect lines in compliance with the instruction. Voltage usually exists in the battery, so operators should peel one line and then connect another starting from B-. Lines should be connected from the low position to the high position with no mistake of order, or the irreparable damage could be caused.
When lines get connected, bits of copper and tin should not cling to the guard shield.
Protection board should be connected to battery group with compliance to specifications and any leading line should not be put on the back of the board but on the lateral side.
When equipping the guard shield, hard epoxy sheer should be fixed on the back of the board as the barrier to prevent the squeezing against short circuit.
When welding output lines, power supply line with the proper diameter should be chosen to prevent great temperature rising and great dropping of line voltage while high current discharges.
The guard shield is usually fixed in the battery box, insulation, heat relief and tightness should be greatly concerned, or the internal short circuit could lead to some danger.
The full-charged battery group should be put properly out of children touch.
If any unusual condition appears during the using process, please stop using the product immediately.
