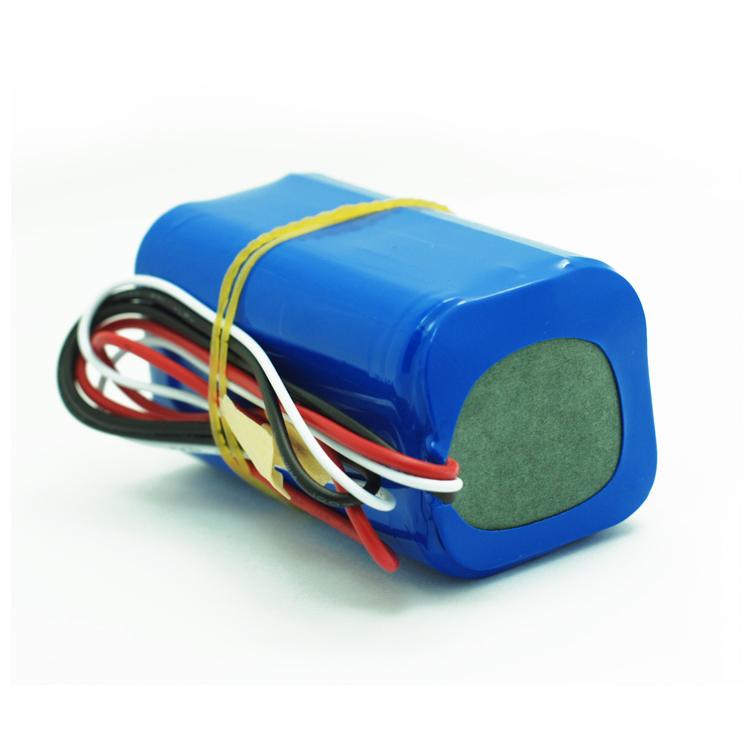

14.8V 2500mAh 18650 Li-ion Battery Pack for Security, Medical, and Portable Devices

Wholesale Custom 14.8V 2500mAh 18650 Lithium Ion Battery Pack for Security Devices, Medical Tools, and Handheld Instruments

Product Model: Lithium-ion 18650 Battery Pack 14.8V 2500mAh

Product Description:

Himax Battery’s LiFePO4 6.4V 1500mAh rechargeable battery is designed for those who demand ultimate performance and reliability. This 6.4V 1.5Ah Lithium Iron Phosphate Battery combines cutting-edge technology with an eco-friendly approach, making it an ideal choice for your OEM procurement.

Safety & Economy: Each 18650 Lithium Ion Battery Pack 6.4V features a built-in PCM protection board, guarding against over-discharge, over-charge, short circuits, and more, ensuring safe operation. Our lithium battery with PCM/BMS protection provides peace of mind.
Eco-Friendly: LiFePO4 batteries are environmentally friendly, free from heavy metals, and have no memory effects, aligning with modern ecological requirements.
Excellent Discharge Characteristics: With low internal resistance and high flat voltage characteristics during strong current discharge, our batteries ensure a wider range of applications, such as rechargeable packs for LED lights and backup power solutions.
Long Cycle Life: Offers long storage life with few limiting conditions. It allows for problem-free charging after long storage, permitting use in a wide range of applications and providing over 2,000 charge cycles for extended operational life.
Lightweight Design: Compared to traditional lead-acid batteries, our lithium-ion battery packs are significantly lighter, achieving up to an 80% weight reduction, facilitating easier integration and transport.
Applications: Electric toy, power tool, electric back-up, Medical equipments.

Technical Parameters:

Part Number	Custom Lithium ICR 18650 Battery Pack 14.8V 2500mAh
MAIN PARAMETER
Rated Capacity	2500mAh
Nominal Voltage	14.8V
Max Charge Voltage	16.8V
Discharge Cut Off Voltage	11V
Charging Current	0.2C
Max. Continuous Discharging Current	1C
Cycle Life	500 cycles
Discharge Rate	≤3%
MECHANICAL SPECIFICATIONS
Dimensions (TWH)	713838mm ±5mm / Customized
Weight	Approx. 175g
Encapsulation	Customized is available
OTHERS
Operating Temperature	Charging: 0~45℃/Discharging:-20 ~60℃
Storage Temperature	-20 ~ 60℃
Humidity	5% to 95% relative humidity
Certification	CE/RoHS/MSDS/UN38.3
Main protection function	Overcharge, over discharge, over current, short circuit, etc.
Delivery period	7-20 days, depending on stock and quantity.
Warranty	One year
APPLICATIONS
1) Energy Storage: UPS , backup ,power station 2) Intelligent Robots 3) EV : Electric scooters 4) Solar System, Wind Energy Storage, Solar/Storage Home System, Solar Street Light 5) General Energy Storage (Such as: Back-up Power, Miner’s lamp, portable power supply, digital products etc.)

FAQ

Generally, What are Lithium-Ion Batteries?

Lithium-ion batteries are rechargeable batteries where lithium ions move between the anode and cathode during charging and discharging. They are popular for consumer electronics due to their high energy density, absence of memory effect, and slow loss of charge when idle. Himax Battery primarily focuses on designing, manufacturing, and marketing LiFePO4 (Lithium Iron Phosphate) batteries for both starter and deep cycle applications.

Features of Ionic Lithium-Ion Deep Cycle Batteries:

Lightweight: Up to 80% less than a conventional, comparable energy storage lead-acid battery.
Lasts Longer: 300-400% longer than lead-acid, with an expected 8-10 years of battery life.
Lower Self-Discharge Rate: Less than 3% per month (compared to 5-8% for lead-acid).
Drop-in Replacement: Designed for seamless integration as a drop-in replacement for your OEM battery.
Enhanced Safety: No explosive gases during charging, no acid spills, ensuring safe operation.
Environmentally Friendly: Contains no lead or heavy metals, making it an truly eco-friendly lithium iron phosphate battery.

What are LiFePO4 (Lithium Iron Phosphate) Batteries?

LiFePO4 batteries offer several advantages over traditional LiCoO2-based Lithium-ion batteries. They provide much higher specific capacity, superior thermal and chemical stability, enhanced safety, improved cost performance, faster charge and discharge rates, enhanced cycle life, all in a compact, lightweight package. LiFePO4 batteries can offer a cycle life of over 2,000 charge cycles, making them one of the most durable and reliable battery types available.

Why Choose Himax Electronics’s Lithium-Ion “Deep Cycle” Energy Storage Battery?

Our lithium-ion batteries offer multiple advantages over standard lead-acid batteries for energy storage:

Substantially Lighter: Just a fraction of the weight of original lead-acid batteries.
More Powerful: Operate at a higher voltage, providing consistent power output even when battery capacity is low. They maintain over 12.8V even with only 20% capacity remaining.
Low Self-Discharge Rate: Lose less than 3% charge per month, allowing for extended storage without worry.
Environmentally Friendly: Himax batteries contain no toxic substances like poisonous lead or corrosive sulfuric acid, eliminating the risk of explosive gassing events common with lead-acid batteries. No acid level maintenance or venting required.
Long Lasting: Himax lithium-ion batteries provide 8-10 years of use, easily exceeding the life of any lead-acid battery, offering significant long-term cost savings.
Fast Recharging: Can accept charge current up to 5 times faster than lead-acid batteries, with a charge efficiency of about 97% (compared to 75% for lead-acid), reducing charging time and strain on your alternator.

What Advantages Does Himax Electronics’s “Deep Cycle Batteries” Have Over Other Batteries?

Himax utilizes the latest advancements in lithium-ion battery technology along with custom features to provide you with the best battery for your application:

Internal Cell Balancing Circuit: Himax batteries feature a micro-processor controlled internal cell balancing board designed to maximize the performance of each cell.
Battery Management System (BMS): Himax Electronics lithium-ion smart batteries incorporate a solid-state switch that controls temperature volatility, preventing overcharging and discharging, thus improving overall lifespan, performance, and safety.
Quality Engineering: Himax’s innovation laboratory prides itself on the design and construction of its batteries, utilizing the highest quality components at all stages. The Himax built-in intelligent components guarantee the safety and quality of each product.
Prismatic Cells: Unlike cylindrical cells with limited shapes and sizes, Himax’s prismatic cells are rectangular packages that can be freely designed and sized according to specific battery case requirements. This allows for a perfect drop-in fit in most applications and offers superior thermal management properties.

How Does Himax Electronics’s “Deep Cycle” Capacity (Ah) Rating Compare to Lead-Acid Ah Ratings?

Himax’s “Deep Cycle” batteries have a true lithium capacity rating at a 1C discharge rate, meaning a 12Ah “Deep Cycle” lithium-ion battery can provide 12A for 1 hour. In contrast, most lead-acid batteries have a 20hr or 25hr rating printed for their Ah capacity, meaning the same 12Ah lead-acid battery discharging in 1 hour would typically only provide about 6Ah of usable energy. Himax’s lithium-ion batteries have 1/3 the internal resistance of a similar capacity lead-acid battery and can be safely discharged to 90% DOD. This means a 12Ah lithium battery will perform closer to a 48Ah lead-acid battery rating for higher discharge currents and life performance.

Download

Lithium Ion Battery Wholesale

Wholesale Custom 14.8V Lithium-Ion Batteries from Himax Electronics

When purchasing wholesale 14.8V lithium-ion battery packs from Himax, you’re guaranteed top-tier quality, reliability, and cost-effectiveness at every stage. Each Li-ion battery undergoes a rigorous pre-sale quality inspection before shipping. We apply strict standards to select only 18650 lithium battery cells that meet the highest performance, durability, and safety levels. This ensures that the Li-ion batteries you order are crafted from premium materials and undergo thorough testing to guarantee reliability.

At Himax, we specialize in custom Li-ion battery packs tailored to your exact specifications, providing OEM lithium battery pack for industrial use solutions for industries like consumer electronics, renewable energy, and medical devices. Our advanced BMS technology offers robust protection against overcharging, short circuits, and overheating, ensuring safety and optimal performance. With bulk Li-ion battery orders, our custom solutions offer an affordable option that meets the demands of your business, while enhancing overall value with clear usage guidelines to maximize lifespan and efficiency.

For bulk buyers, Himax stands out among Li-ion battery suppliers by offering not only competitive wholesale pricing but also comprehensive after-sales support, including warranties and technical assistance. Whether you require custom battery designs or long-term service agreements, we are committed to delivering cost-effective, reliable solutions that perform flawlessly over time.

IMPORTANT: PRE-USE GUIDELINES

✅ DO: Perform a Pre-Installation Check!
Ensure a thorough examination before installation:

Inspect Each Cell: Visually check for any damage, swelling, leaks, or missing accessories. Do not use a cell if the casing is pierced, leaking, cracked, or otherwise visibly damaged.
Clean the Terminals: Ensure bus bars, wire terminal lugs, and terminals are clean and free from corrosion or debris. This helps reduce resistance between the DC terminal and cable connection.
Test Voltage and Capacity: Use a multimeter to check each cell’s voltage and internal resistance, and a battery analyzer or specialized tester to confirm capacity.
Top Balance Before Use: Charge all cells to full voltage before assembling them. We recommend using chargers specifically designed for Li-ion cells.

🚫 DON’T:

Do Not Discharge Immediately After Delivery: Allow the battery to settle before use.
Do Not Mix Cells from Different Series: Even if they are the same type and capacity, avoid mixing cells from different manufacturing series or batches. Always use cells from the same batch.
Avoid Loose Terminal Connections: Ensure all terminals are securely fastened to prevent performance issues.

We Could Design and Develop 18650 Battery Pack According to Your Product Work Performance & Structure Appearance.

18650 Battery Pack could be designed according to your product work performance

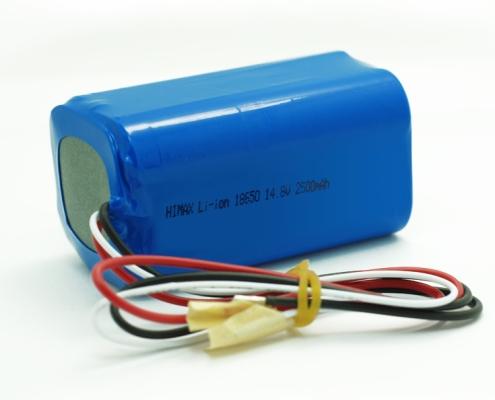

14.8V 2500mAh 18650 Lithium Ion Battery Pack

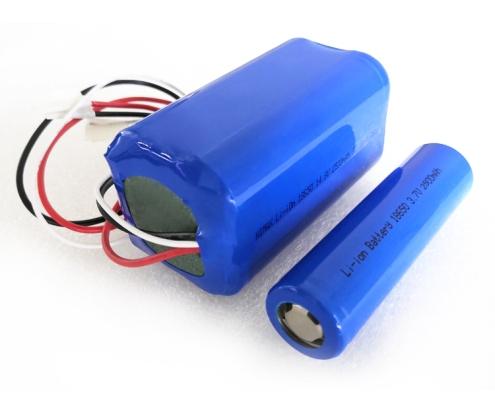

18650 Lithium Ion Battery Pack 14.8V 2500mAh
